| 污排水用管 |
|

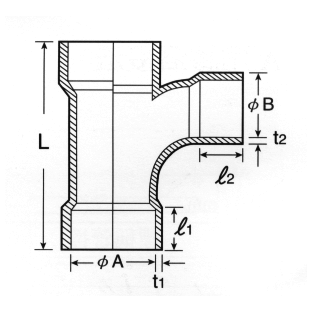

| 排水異徑順T |
|
|
|
MSF-27 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
ΦB |
L |
 1 |
2 |
t1 |
t2 |
產品代號 |
| 110x63 |
4"x2" |
110.4 |
63.3 |
212.3 |
64.5 |
39.1 |
4.5 |
3.2 |
MSF-27034 |
| 110x90 |
4"x3" |
110.4 |
90.3 |
247.0 |
64.7 |
53.7 |
4.5 |
3.7 |
MSF-27036 |
| 160x110 |
6"x4" |
160.4 |
110.4 |
400.3 |
80.9 |
61.0 |
6.5 |
4.5 |
MSF-27040 |
| 200x110 |
8"x4" |
200.6 |
110.4 |
406.0 |
109.5 |
62.2 |
8.1 |
6.7 |
MSF-27042 |
| 200x110 |
8"x6" |
200.6 |
160.5 |
428.2 |
108.9 |
89.6 |
8.9 |
7.0 |
MSF-27043 |
|
|

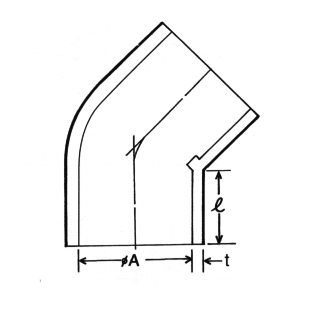

| 排水45度彎頭 |
|
|
|
MSF-32 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
|
t |
產品代號 |
| 90 |
3" |
90.3 |
51.8 |
4.0 |
MSF-32090 |
| 110 |
4" |
110.4 |
63.6 |
5.2 |
MSF-32110 |
| 160 |
6" |
160.5 |
91.2 |
7.8 |
MSF-32160 |
| 200 |
8" |
200.6 |
106.2 |
8.8 |
MSF-32200 |
|
|

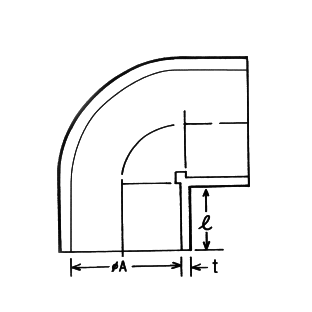

| 排水90度彎頭 |
|
MSF-38 |
|
|
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
|
t |
產品代號 |
| 110 |
4" |
110.4 |
61.3 |
5.0 |
MSF-38110 |
| 160 |
6" |
160.4 |
86.2 |
7.3 |
MSF-38160 |
| 200 |
8" |
200.6 |
106.2 |
8.8 |
MSF-38200 |
|
|
|
【備註】
- 以上規格表符合CNS13474-K3106「一般用水丙稀晴-丁二烯-苯乙烯
(ABS)塑膠管」
- 訂購時請註明顏色代號為灰色「A」、桔色「O」、本色「C」。
|
|
|
