| 污排水用管 |
|
| 排水Y型三通 |
|
|
|

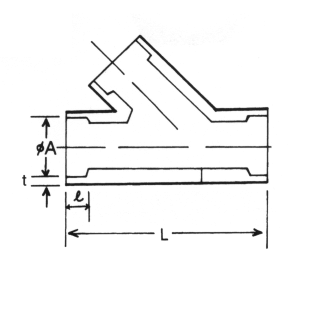

MSF-21 |
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
L |
 |
t |
產品代號 |
| 63 |
2" |
63.1 |
172.0 |
38.1 |
3.1 |
MSF-21063 |
| 90 |
3" |
90.2 |
256.8 |
54.6 |
4.1 |
MSF-21090 |
| 110 |
4" |
110.2 |
303.0 |
61.7 |
5.0 |
MSF-21110 |
| 125 |
5" |
125.4 |
307.0 |
69.5 |
5.5 |
MSF-21125 |
| 160 |
6" |
160.5 |
401.0 |
86.3 |
6.5 |
MSF-21160 |
| 200 |
8" |
200.6 |
502.4 |
107.3 |
8.1 |
MSF-21200 |
|
|
| 排水異徑YT |
|

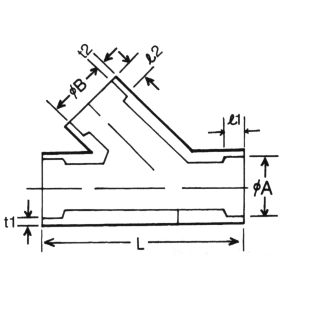

MSF-22 |
|
|
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
ΦB |
L |
1 |
2 |
t1 |
t2 |
產品代號 |
| 90x63 |
3"x2" |
90.3 |
63.3 |
257.0 |
54.1 |
42.3 |
4.2 |
3.5 |
MSF-22027 |
| 110x63 |
4"x2" |
110.2 |
63.4 |
301.1 |
65.2 |
42.7 |
5.0 |
3.5 |
MSF-22034 |
| 110x90 |
4"x3" |
110.4 |
90.4 |
301.2 |
65.9 |
56.7 |
5.1 |
4.5 |
MSF-22036 |
| 160x63 |
6"x2" |
160.4 |
63.5 |
305.6 |
93.2 |
51.7 |
7.1 |
4.3 |
MSF-22038 |
| 160x90 |
6"x3" |
160.5 |
90.2 |
305.6 |
93.3 |
61.0 |
7.2 |
5.4 |
MSF-22039 |
| 160x110 |
6"x4" |
160.5 |
110.3 |
305.6 |
93.5 |
61.3 |
7.2 |
6.7 |
MSF-22040 |
| 200x110 |
8"x4" |
200.5 |
110.4 |
406.2 |
107.2 |
62.2 |
8.3 |
6.7 |
MSF-22042 |
| 200x160 |
8"x6" |
200.6 |
160.5 |
406.8 |
107.3 |
93.2 |
8.1 |
7.2 |
MSF-22043 |
|
|
| 排水順T |
|

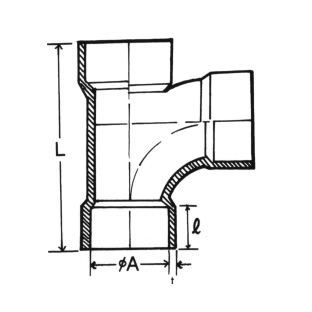

MSF-27 |
|
|
|
單位 : mm |
| 標稱管徑(mm) |
ΦA |
|
t |
產品代號 |
| 20 |
1/2" |
20.1 |
17.0 |
3.8 |
MSF-29020 |
| 25 |
3/4" |
25.1 |
19.0 |
2.4 |
MSF-29025 |
| 32 |
1" |
32.2 |
37.1 |
4.5 |
MSF-29032 |
|
|
|
【備註】
- 以上規格表符合CNS13474-K3106「一般用水丙稀晴-丁二烯-苯乙烯
(ABS)塑膠管」
- 訂購時請註明顏色代號為灰色「A」、桔色「O」、本色「C」。
|
|
|
